ReinnoVet RFA-100 is a pioneering veterinary radiofrequency tumor ablation system designed to deliver safer, faster, and minimally invasive tumor treatments for companion animals. Combining intelligent control technology with precise ablation functions, the RFA-100 empowers veterinarians to achieve superior surgical outcomes while reducing recovery time. Whether used for treating localized tumors or supporting broader surgical plans, the RFA-100 provides a reliable, efficient, and animal-friendly solution for modern veterinary practices.
✅ Minimally Invasive
Faster recovery, less bleeding
🔁 Smart Feedback
Real-time tissue response control
▶️ One-Touch Start
Simplifies operation for all skill levels
Dual-variable feedback reshapes the future of veterinary oncology.
With real-time temperature and impedance monitoring, ReinnoVet RFA-100 intelligently adjusts power output to ensure targeted tumor destruction, tissue protection, and surgical confidence — every time.
Suitable for soft tissue tumors, organ lesions, and subcutaneous nodules.
Veterinary radiofrequency ablation (RFA) is a minimally invasive technique that uses controlled radiofrequency energy to precisely destroy abnormal tissues, such as tumors, while preserving surrounding healthy structures. ReinnoVet RFA-100 optimizes this process with advanced energy feedback and smart control mechanisms, providing reliable outcomes for companion animal care.
When radiofrequency current passes through animal tissues, the alternating electromagnetic field causes water molecules to oscillate rapidly, generating heat. This creates a localized temperature field.
As tumor tissue is heated, intracellular water vaporizes and proteins coagulate, resulting in irreversible cell death.
The process is non-carbonizing, bloodless, and minimally invasive, offering a precise and safe tumor treatment option for veterinary oncology.
Discover how RFA-100 brings precision, safety, and efficiency to every procedure.
Advanced Smart Control for Veterinary Tumor Ablation

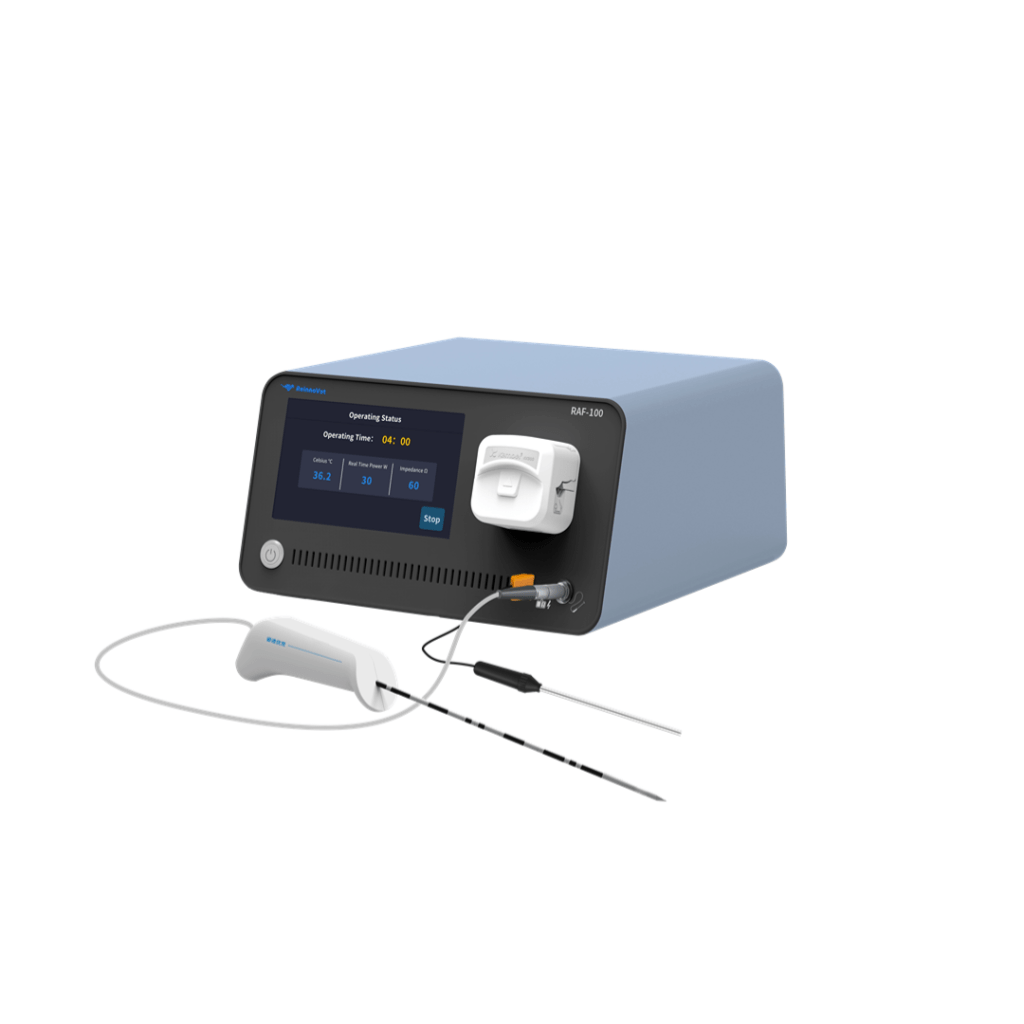

ReinnoVet RFA-100 features a smart ablation central panel, enabling both intelligent and manual operation modes. Surgeons can easily adjust parameters to optimize energy delivery, ensuring precision in veterinary radiofrequency ablation procedures across diverse surgical scenarios.
✔ Real-time temperature & impedance monitoring
✔ Intelligent feedback for dynamic power control
✔ Prevents overheating or incomplete ablation
✔ Ensures precise treatment with safer tissue margins
✔ Intelligent Mode – auto-adjusts power & duration based on tissue status
✔ Manual Mode – requires user to set each parameter manually
✔ Smart mode reduces learning curve and enhances precision
✔ Ideal for both experienced surgeons and new users
🔁 From Control to Safety
Seamless integration of intelligent control and safety features enhances surgical reliability.
Elevating Safety and Efficiency in Veterinary Tumor Ablation
Equipped with real-time impedance monitoring and smart energy adjustment, the RFA-100 enhances the safety profile of veterinary radiofrequency ablation. By minimizing collateral tissue damage and optimizing treatment parameters, veterinary surgeons achieve more predictable and successful outcomes.
✔ Ablation completed in under 10 minutes
✔ Visual completion signal with smiley face
✔ Less surgical time = faster recovery
✔ Simplifies post-op monitoring for clinics
✔ Real-time impedance monitoring to ensure safe energy delivery
✔ Automatic alert when the return electrode (grounding pad) is not properly attached
✔ Prevents ineffective ablation and reduces risk of tissue carbonization
✔ Microprocessor-based protection provides peace of mind during every procedure
Long-Term Value, Smart Investment for Veterinary Practices
ReinnoVet RFA-100 is designed for durability, scalability, and cost-effectiveness. Its reusable accessories and low maintenance requirements ensure long-term value, helping clinics achieve sustainable returns while offering cutting-edge veterinary radiofrequency ablation services.
The patient is a 12-year-old senior dog diagnosed with an oral tumor located deep in the gingival tissue.
Due to the tumor’s deep location and the patient’s advanced age,
open surgery was not recommended by the attending veterinarian.
Instead, the RFA-100 precision radiofrequency ablation system
was used to perform targeted, minimally invasive tumor ablation.
The procedure was
✅ minimally invasive
✅ well tolerated
with no complications during or after treatment.
By Day 14 post-operation,
the mucosa had healed, with
no signs of infection or tumor recurrence observed.
Curious about more cases?
Request our veterinary casebook.
Tailored value for every hand in the operating room — and beyond.
Precise Control, Less Guesswork
🔹 Smart Feedback
Real-time dual-variable feedback monitors tissue temperature and impedance, allowing for dynamic energy adjustment and controlled ablation margins.
🔹 Simplified Workflow
Automated energy modulation reduces the need for manual power tuning, enabling safer performance—even in deep-seated or complex anatomical areas.
“Treat tumors with confidence, even in delicate zones.”
Reliable Technology, Lower Operational Cost
🔹 Shorter Procedures, Higher Efficiency
Most ablations are completed in under 10 minutes, minimizing anesthesia time and maximizing daily surgical capacity.
🔹 Reusable Probes = Better ROI
RFA-100 electrodes are designed for 50+ uses, significantly reducing per-procedure cost compared to disposable tools.
“Advanced tech that pays off faster.”
Minimally Invasive, Maximum Care
🔹 No Open Surgery Needed
RFA-100 provides an alternative to invasive tumor excision, especially for older pets or tumors in hard-to-reach locations.
🔹 Quick Recovery, Low Stress
Micro-ablative technique minimizes collateral damage, allowing same-day discharge and visible recovery within 3–5 days.
“Gentle healing for pets who deserve better.”
| Item | Specification |
|---|---|
| Protection Class | Class I |
| Ingress Protection | Main Unit: IPX1 |
| Input Power | Voltage: 220V Frequency: 50Hz Power: 300VA |
| Output | Max Voltage: 250V peak Max Power: 100W Frequency: 450kHz |
| Ablation Range | ≤ 4cm (single needle) |
| Operating Environment | Temperature: 10°C to 30°C Humidity: 30–70%, non-condensing Atmospheric Pressure: 70kPa–106kPa |
| Transport & Storage Conditions | Avoid strong vibration, impact, sunlight, rain/snow; store in dry, clean, ventilated area Temperature: -20°C to +55°C Humidity: 10–93%, non-condensing Pressure: 70kPa–106kPa |
| Net Weight | 9 kg |
| Device Dimensions | 320mm × 360mm × 170mm |
| System | Component | Model | Quantity |
|---|---|---|---|
| RFA-100 Ablation System | Main Console | RAF-100 | 1 |
| Ablation Needle | RSNE-10-2 | 1 | |
| Ablation Needle | RSNE-10-3 | 1 | |
| Ablation Needle | RSNE-10-4 | 1 |
Needle specifications and accessories are customizable upon request.
RFA-100 is designed for minimally invasive ablation of solid tumors in companion animals, especially when surgical resection is not feasible.
It uses a dual-variable feedback system (temperature + impedance) to dynamically regulate energy output in real time, ensuring safe and controlled ablation zones.
Veterinary radiofrequency ablation with the RFA-100 system is suitable for a wide range of soft tissue tumors, including hepatic tumors, pulmonary nodules, subcutaneous masses, and other accessible solid tumors. It is ideal for tumors that are difficult to remove surgically or for patients who are not good candidates for open surgery.
Yes. Depending on the tumor site and animal status, sedation or general anesthesia is required to ensure immobility and comfort.
For standard single-lesion tumor ablations, each RFA needle typically supports around 15–20 procedures.
Note: Use on fibrotic or large tumors may lead to faster wear.
Most procedures can be completed in 5–15 minutes, depending on tumor size and location.
Yes. Especially useful for recurrent tumors or tumors that require staged ablation.
The system is designed for ease of use with one-touch operation and smart guidance, but clinical training is recommended for safe and effective use.
Compared to traditional excisional surgery, veterinary radiofrequency ablation offers a less invasive alternative with reduced surgical trauma, lower anesthesia time, shorter recovery periods, and minimized risks of postoperative complications. The RFA-100 system enhances these benefits through intelligent energy feedback technology.
Key advantages include smart control precision panel, customizable manual ablation modes, real-time safety monitoring, long-term cost-effectiveness through reusable accessories, and compact design tailored for veterinary clinical environments. It is a scalable solution for growing veterinary oncology services.
Absolutely. ReinnoVet RFA-100 is designed for both specialty oncology centers and general veterinary hospitals. Its intuitive interface and flexible ablation settings allow veterinarians with different experience levels to perform safe and effective veterinary radiofrequency ablation procedures.
The RFA-100 is engineered for durability and minimal maintenance. Routine checks on electrode connections, impedance monitoring, and software updates ensure optimal performance. ReinnoVet provides full technical support and training resources for clinic teams.
